Environmentally-Friendly LED BacklightBy utilizing an energy-efficient LED as a backlight, the monitor achieves a high-brightness and low power consumption at the same time. Unlike conventional CCFL backlights, LED backlights deteriorate more slowly and thus the monitor offers a longer service life. Since the LED backlight is mercury free, it will reduce any potential impact on the environment when it is disposed of. Consistency with DICOM Part 14 CalibrationWith the bundled RadiCS LE quality control software, a simplified calibration compliant with the DICOM Part 14 standard can be performed to correct the brightness and grayscale tones of the monitor ensuring the most accurate and consistent shadings possible over time. Easy Calibration with Integrated Front SensorAn Integrated Front Sensor (IFS) housed within the front bezel measures brightness and grayscale tones and calibrates to the DICOM Part 14 standard. Without having to connect and disconnect, an IFS performs QC tasks and does not interfere with the viewing area. This dramatically cuts monitor quality control workload and maintenance costs.
Monochrome and Color Images on One MonitorA high-quality IPS panel with a high contrast ratio and high brightness makes this model ideal for displaying 3D rendering and fusion color images as well as CT and MRI monochrome images compliant with the DICOM Part 14 standard. Brightness Uniformity for a Steadier Image Across the ScreenThe Digital Uniformity Equalizer (DUE) function provides optimum brightness uniformity which is difficult to attain due to the characteristics of LCD monitors.
Quick Brightness Stabilization for Instant ViewingAt startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level. In addition, a sensor measures the backlight brightness and compensates for brightness fluctuations caused by the ambient temperature and the passage of time. Brightness Stability Within Usage Time GuaranteedEIZO's confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty. |

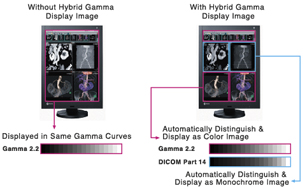

Color and Monochrome Images with Separate Gamma CurvesEIZO's unique Hybrid Gamma function distinguishes whether the images being displayed are monochrome or color and displays each image in optimum brightness and grayscale tones. This expands the usability of PACS applications constantly attaining sufficiency with mix of color and monochrome medical images. Accuracy in distinguishing between grayscale and color images may depend on how they are aligned. Viewer software compatibility verification is required.
Presence Sensor for Power SavingsThe presence sensor feature unites convenience with savings by ensuring that the monitor conserves power when it is not in use. The presence sensor prompts the monitor to switch to power save mode when it detects the user is away from the monitor, and then resume normal operation when the user returns. 10-bit ColorThe monitor can support 10-bit input for each RGB color, displaying more than one billion colors simultaneously. This ensures accurate reproduction of color tones for 3D color rendering and image fusion. 10-bit color graphics board and 10-bit color viewer software needed for 10-bit color display. Mode Selection for Optimum ViewingSelectable with the front panel buttons, the CAL Switch function allows for various imaging modes of different modalities such as CR, CT, and endoscope images. Furthermore, auto mode settings can be made with the Auto CAL Switch function. Wide Viewing Angles for Multiple People UseWide Viewing angles with minimal color shift when viewed from the side. Versatile Positioning for Improved OperabilityEIZO's highly versatile stand offers tilt, swivel and a wide height adjustment range enabling you to use the monitor with greater comfort. Customer Assurance with Medical StandardsMeets the strictest medical, safety, and EMC emission standards. |
