Environmentally-Friendly LED BacklightBy utilizing an energy-efficient LED as a backlight, the monitor achieves a high-brightness and low power consumption at the same time. Unlike conventional CCFL backlights, LED backlights deteriorate more slowly and thus the monitor offers a longer service life. Since the LED backlight is mercury free, it will reduce any potential impact on the environment when it is disposed of. Image Sharpness with High Contrast RatioThe high contrast ratio brings out the subtle differences in similar shades of gray and sharper rendering of details when displaying monochrome images such as the digital mammography, MRI, and ultrasound images.
High-ResolutionWith a resolution of 5 megapixels or higher, the monitors meet the high level standards required for displaying digital mammography. Displaying with Separate Brightness LevelsFor monochrome monitors, Hybrid Gamma function automatically distinguishes the medical images from the non-medical areas such as the tool palettes and displays each one at its optimum brightness. Decreasing the tool palette area's brightness leads to less eye fatigue. Accuracy in distinction may depend on how images are aligned. Viewer software compatibility verification is required. 10-Bit Simultaneous Grayscale Display10-bit (1,024 tones) simultaneous grayscale display extends grayscale fidelity to the boundaries of human visual perception abilities and helps radiologists discern the finest nuances within an image. 10-bit graphics board and 10-bit viewer software needed for 10-bit display. Wide Viewing Angles for Multiple People UseWide Viewing angles with minimal color shift when viewed from the side. Internal Test Pattern Generator for Expanded Image QualityThe internal test pattern generator can be used to visually inspect image quality without attaching external hardware or installing QC software on the mammography workstation. This can be useful during the initial installation or on systems that prohibit users from installing software packages. FDA 510(k) Clearance for MammographyThe RadiForce GX540 has obtained FDA 510(k) clearance by the U.S. Food and Drug Administration for use in mammography. This assures that the monitor is capable of displaying digital mammography images where high performance is essential. Diagnostic Precision with DICOM Part 14 Factory AdjustmentTo ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tones on the production line to produce a monitor compliant with DICOM Part 14. |

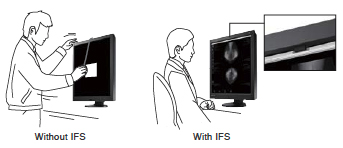

Easy Calibration with Integrated Front SensorAn Integrated Front Sensor housed within the front bezel performs calibration compliant to DICOM Part 14. The sensor does not interfere with the viewing area and is protected from inadvertent damage or removal.
Quick Brightness Stabilization for Instant ViewingAt startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level. In addition, a sensor measures the backlight brightness and compensates for brightness fluctuations caused by the ambient temperature and the passage of time. Mode Selection for Optimum ViewingSelectable with the front panel buttons, the CAL Switch function allows for various imaging modes of different modalities such as digital mammography, ultrasound, and MRI images. Furthermore, with ScreenManager Pro for Medical installed, auto mode settings can be made with the Auto CAL Switch function. Mode Selection for Optimum ViewingSelectable with the front panel buttons, the CAL Switch function allows for various imaging modes of different modalities such as CR, CT, and endoscope images. Furthermore, auto mode settings can be made with the Auto CAL Switch function. Brightness Stability Within Usage Time GuaranteedEIZO's confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty. Presence Sensor for Power SavingsThe presence sensor feature unites convenience with savings by ensuring that the monitor conserves power when it is not in use. The presence sensor prompts the monitor to switch to power save mode when it detects the user is away from the monitor, and then resume normal operation when the user returns. Optimized Brightness and Grayscale Tone with Ambient Light TrackingTo ensure DICOM conformance in changing room light conditions, Ambient Light Tracking (ALT) function with embedded ambient light sensor keeps checking the room light conditions and automatically optimizes the monitor's brightness and grayscale tone to DICOM Part 14. Customer Assurance with Medical StandardsMeets the strictest medical, safety, and EMC emission standards. Digital Mammography Monitor Quality Control Standards ComplianceEIZO's easy-to-use RadiCS UX1 quality control tool (sold separately) performs precise calibration conforming to DICOM Part 14 and enables quality control complying with ACR Practice Guideline and other QC standard for digital mammography monitors. RadiCS compatible QC Standards for Digital Mammography Monitor |
